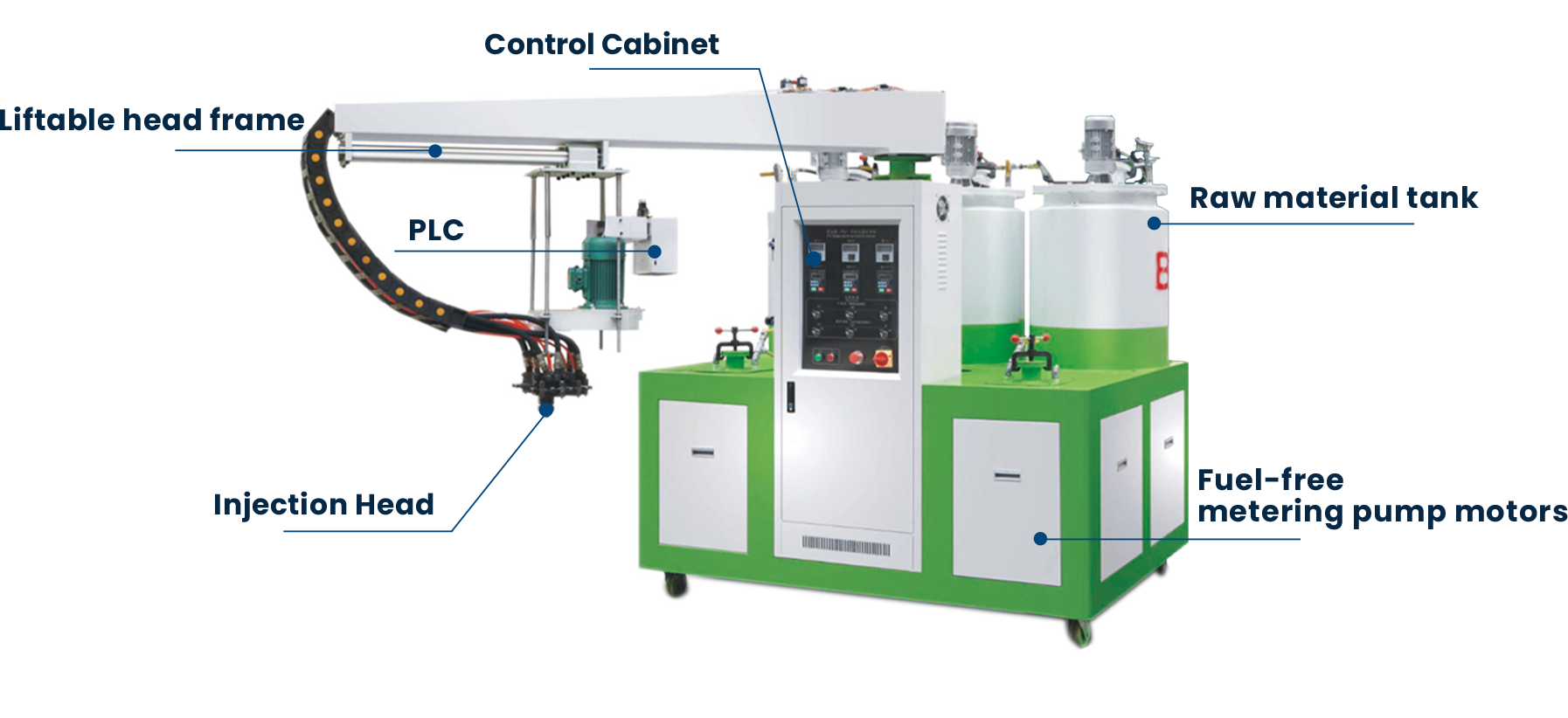

JG-803 PU sole pouring machine

professional PU sole pouring machine manufacturer



PU sole pouring machine

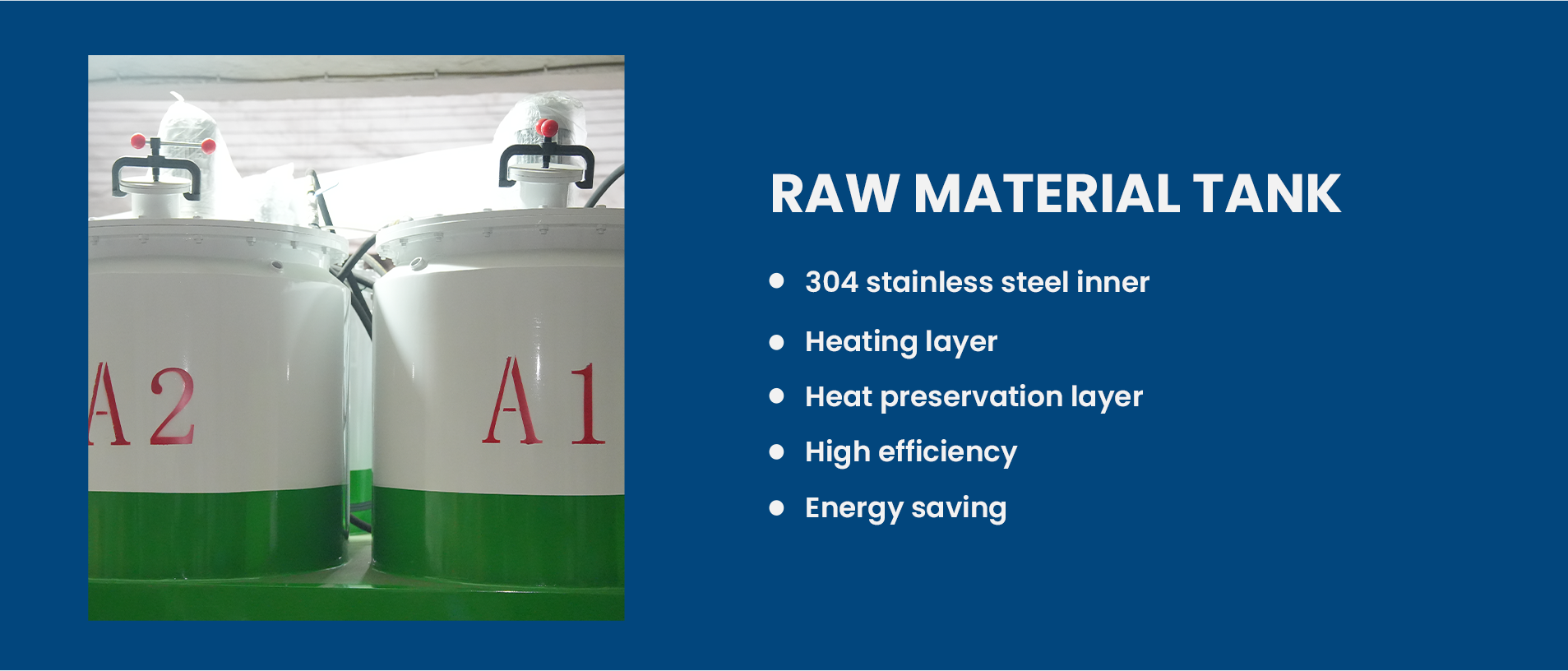

4tanks, capacity of each tank: 160L or 250L Can make two colors two density PU and transparent PU shoe sole at the same time

Pouring machine Working principle
Put the raw material into PU sole pouring machine the storage tank for pressurization by the pressurizing unit, pass through the raw material circuit, and then reach the storage tank to ensure that the system is not blocked. This is a circulation system.

PU sole pouring machine of Characteristics:

1. Have two A tank and two B tank, can make different density and different color foaming outsole, by mix each A and B under requirement. Especially advantage in double pouring head can make transparent polyurethane outsole at same time.

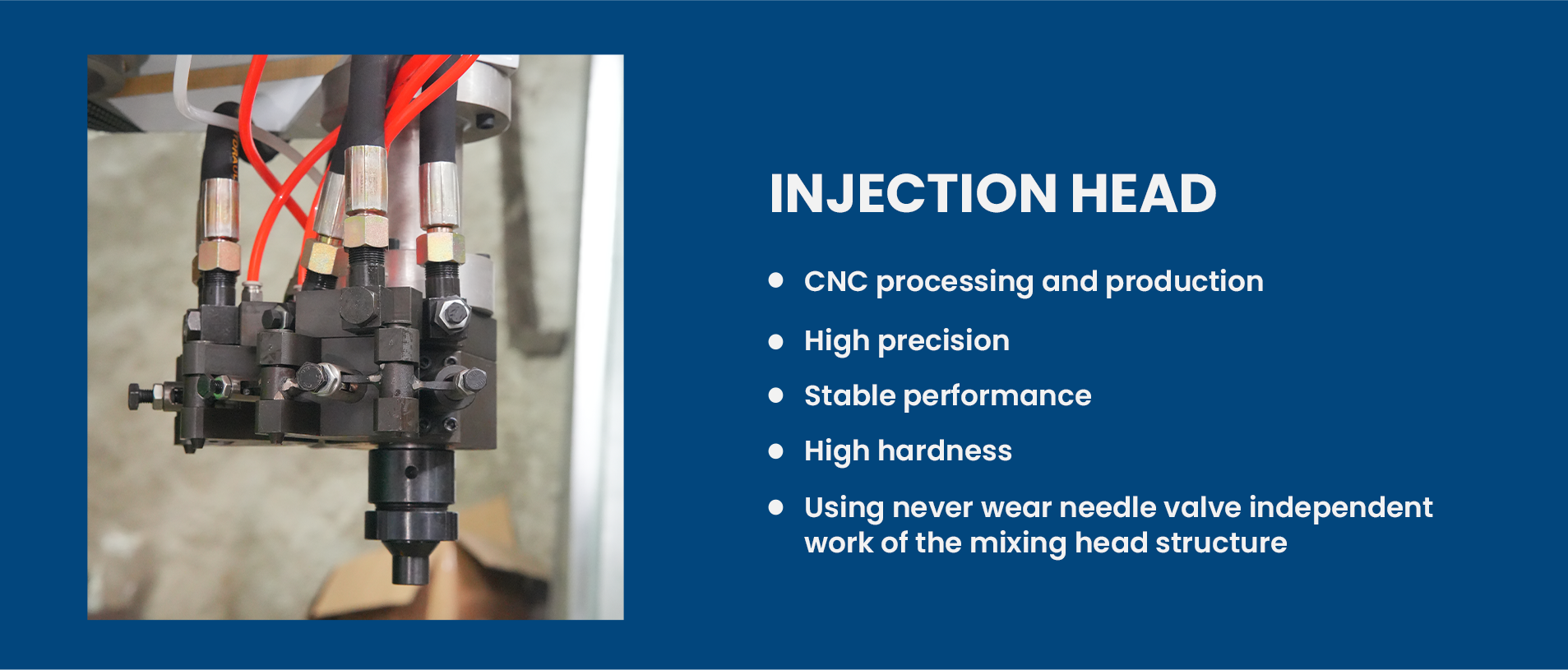

2. Under different proportion of A and B raw material, can get different properties polyurethane sole material. The mix head with four needle which can work independently.
3. Heating system with oil circulation, make heating more fast and more efficient in power saving.

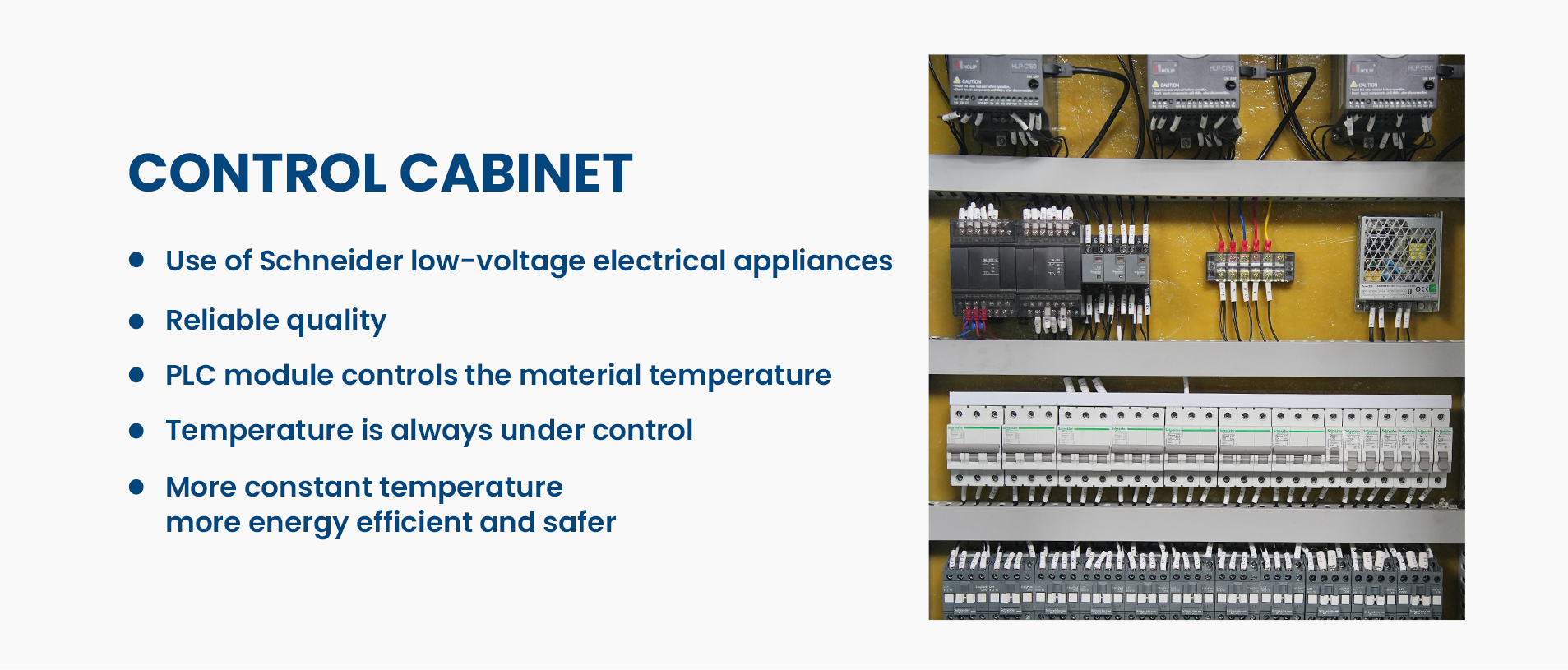

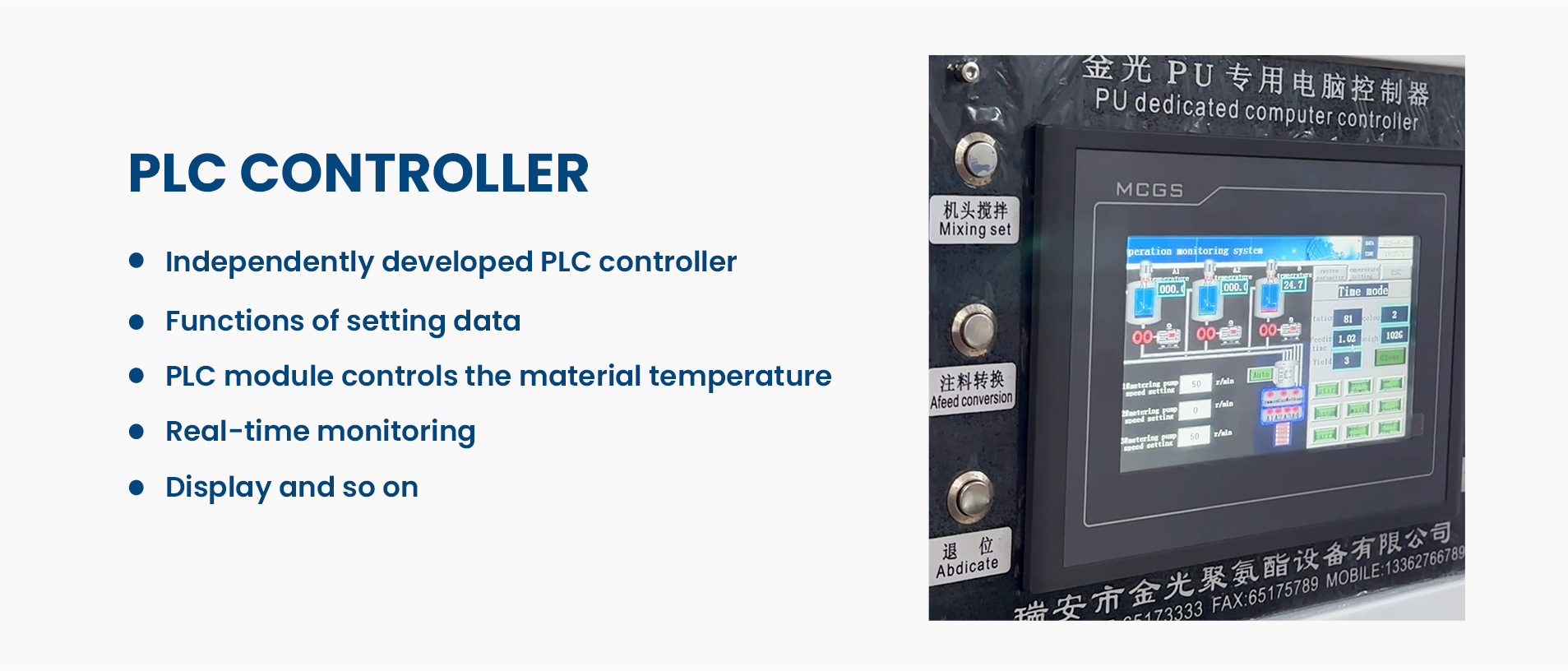

4. Self-developed PLC, with function of setting time, real-time monitoring and so on.

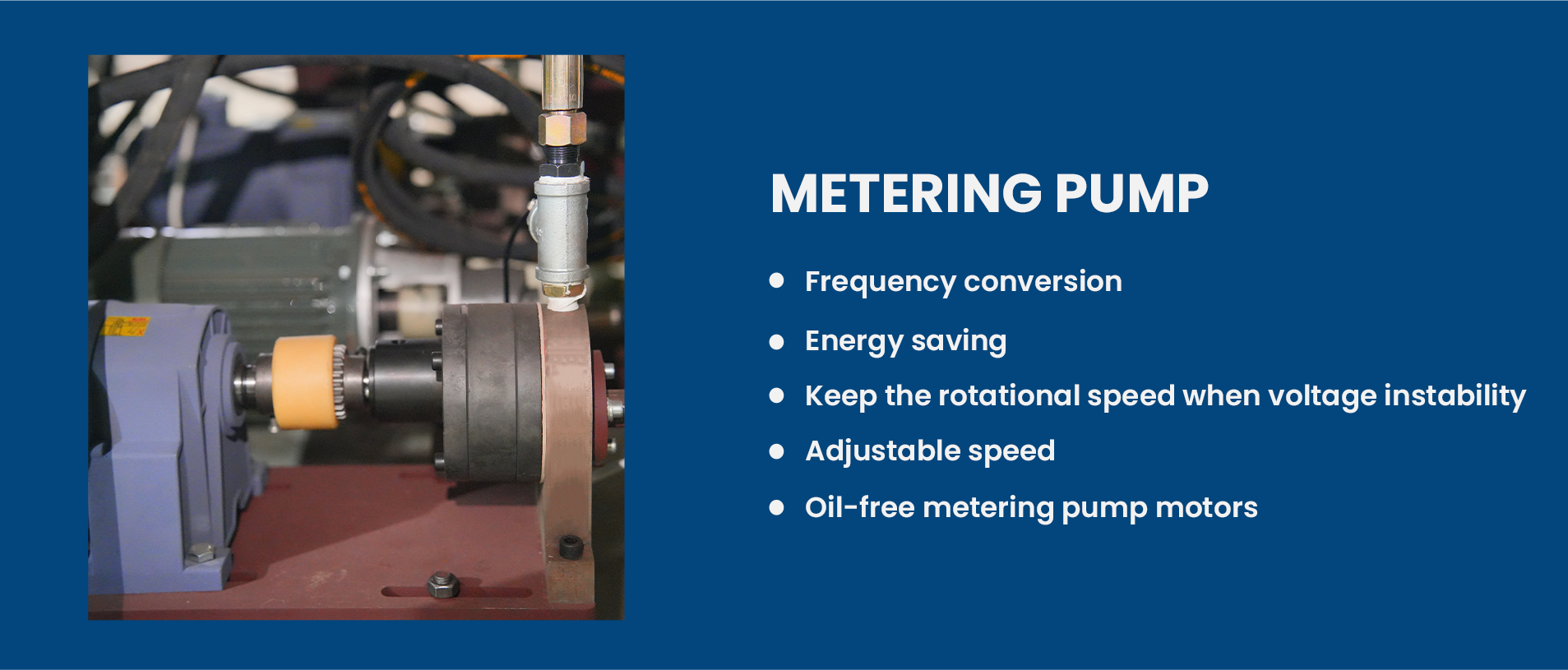

5. The speed of pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.

PU sole pouring machine Operation method
Polyurethane pouring machine Pour in the material and add air pressure, confirm that the temperature and pressure are set correctly, and determine the circulation system, and then the filling can be measured and the mixer can be automatically cleaned.
