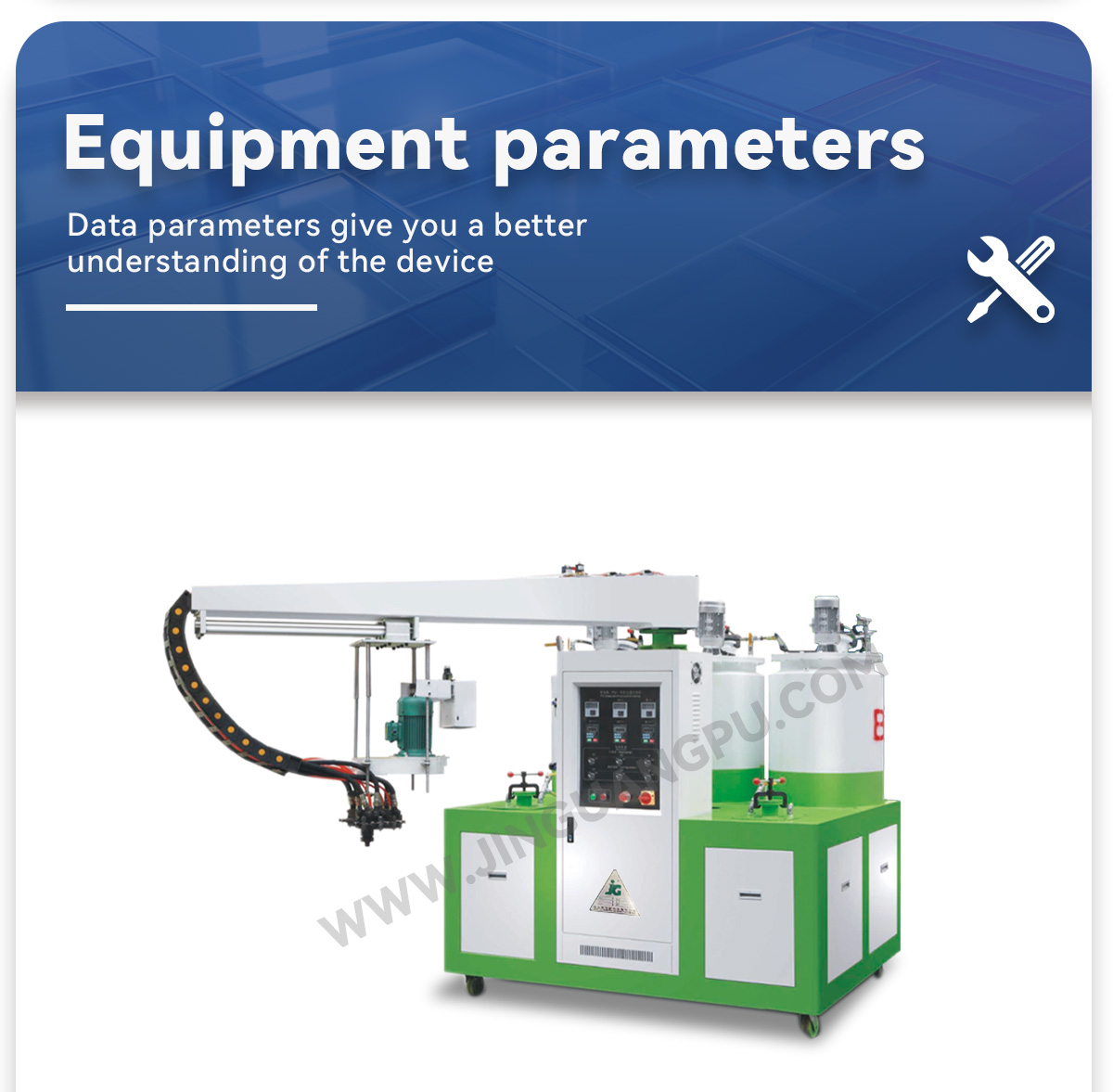

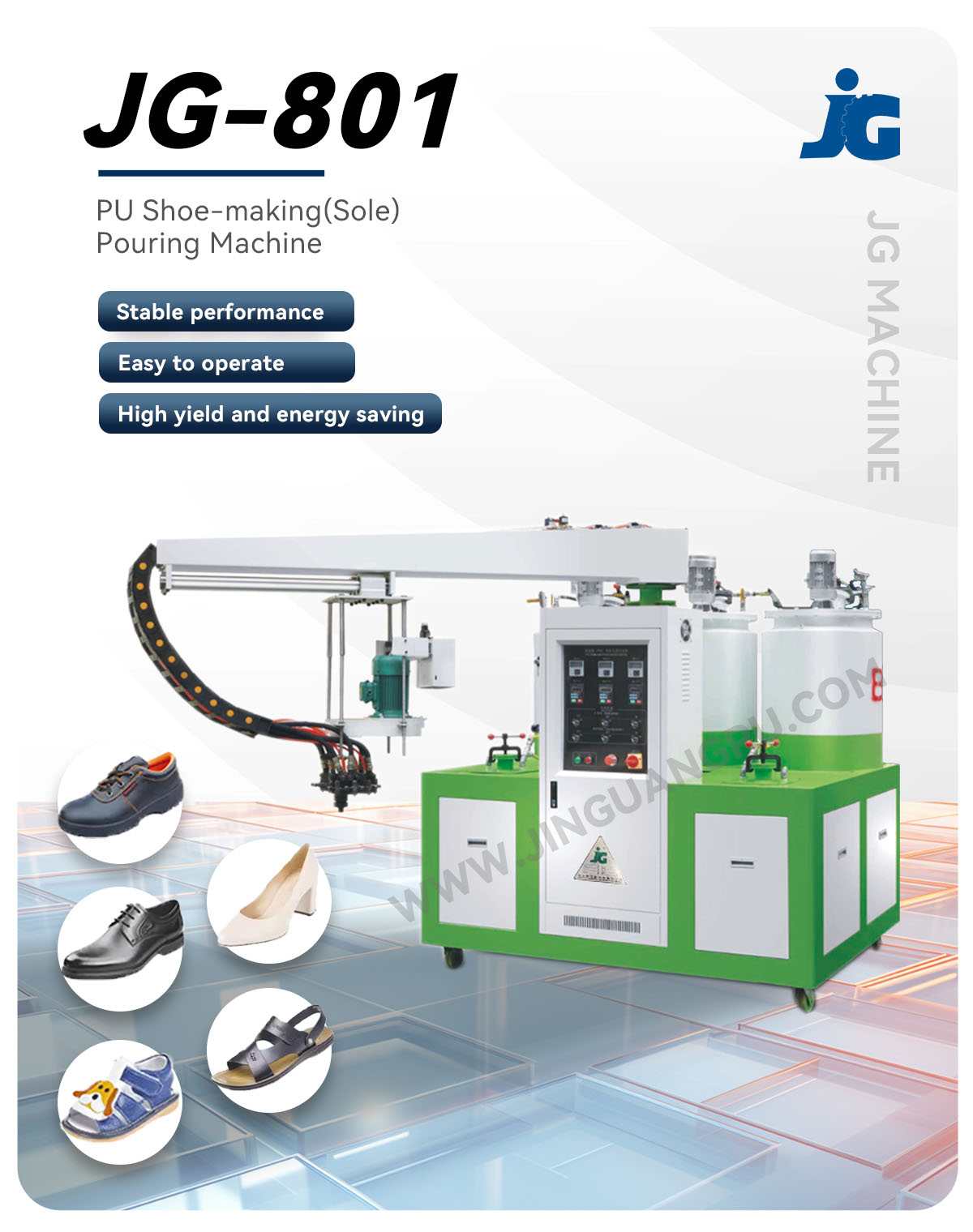

JG-801 Sole pouring machine



Sole pouring machine

3 Tanks,capacity of each tank: 160L or 250L Can make two colors two density PU shoe sole

Sole pouring machine Working principle

Put the raw material into PU sole pouring machine the storage tank for pressurization by the pressurizing unit, pass through the raw material circuit, and then reach the storage tank to ensure that the system is not blocked,This is a circulation system.

JG-801 Sole pouring machine Characteristics:

1. Have two A tank and one B tank, can make different color and different density foaming shoe sole by mixing with A and B raw material.
2. Under different proportion of A and B raw material,can get different properties polyurethane sole material. The mix head with three needle which can work independently.
3. Heating system with oil circulation, make heating more fast and more efficient in power saving.
4. Self-developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of metering pump use frequency conversion control,with advantages of energy saving and keep the rotational speed when voltage instability.
